Product Description

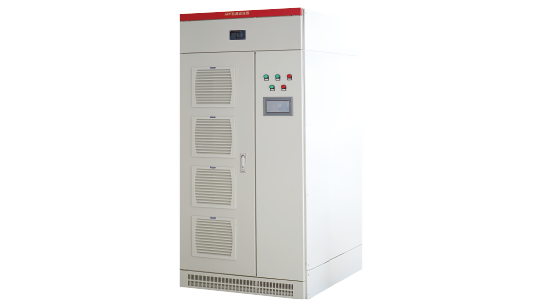

The GPD-V series Dynamic Voltage Restorer (DVR) is an efficient power quality device designed for power systems, addressing voltage fluctuations and short-term voltage sags to ensure stable operation of critical and sensitive loads. It provides precise compensation during grid voltage anomalies, preventing voltage dips and outages.
The GPD-V system employs high-performance inverters and energy storage to respond to voltage fluctuations in milliseconds, outputting stable voltage continuously, boosting grid efficiency and equipment reliability. Its intelligent control supports real-time monitoring and auto-adjustment, with modular design for easy capacity expansion.
Technical Overview
| Basic Parameters | Voltage Level | 400V |
| Rated Capacity | 50kVA-5000kVA | |
| Compensation Range | 0%-130% | |
| Compensation Time | 0.4-30s (Time customizable) | |
| Continuous Voltage Sag Protection | Supported | |
| Grid Input Parameters | Operating Frequency | 50/60Hz ±10% |
| Efficiency | 0.992 | |
| Overload and Short-circuit Protection | Circuit Breaker | |
| Overload Capability | Thyristor overload 150%, maintain for 60s, 500%, maintain for 1s | |
| Three-phase Grid Type | Three-phase three-wire / Three-phase four-wire | |
| LAC Output Parameters | Compensation Voltage Setting | Supported |
| Compensation Action Threshold Setting | Supported | |
| Output Frequency | 50/60Hz ±10% | |
| Voltage Compensation Accuracy | Less than 1% | |
| Voltage Distortion (THDU) | Less than 3% under linear load conditions | |
| Voltage Imbalance | Less than 3% under 100% unbalanced load conditions | |
| Voltage Compensation Full Response Time | Less than 2ms | |
| Response Time | 50us | |
| Load Power Factor | 0.5 lagging to 0.9 leading | |
| Energy Storage Device | Energy Storage Component | Super Capacitor |
| Operating Temperature | -25~+45°C | |
| Charge and Discharge Cycle Times | >1,000,000 cycles | |
| Design Life | 15 years (at 25°C) | |
| Overload Capability | 2 | |
| Recharge Time | Less than 45s | |
| Time Recording | Measurement Method | Phase Voltage / Line Voltage |
| Event Resolution | 10ms | |
| Detection Cycle | 50us | |
| Other Parameters | Communication Interface | 485, CAN |
| Communication Protocol | Modbus | |
| Human-Machine Interface | 8-inch or larger touch screen | |
| Fault-Safe Bypass | Bypass Contactor | |
| Maintenance Bypass | Bypass Circuit Breaker | |
| Cooling | Forced Air Cooling | |
| Noise (dB) | Less than 40 | |
| Operating Temperature | -25 ~ +45°C (Above 40°C, derating by 2% for each additional °C) | |
| Operating Humidity | 0 ~ 95% non-condensing | |
| Operating Altitude (m) | 0 ~ 3000m (>2000m, derating by 1% for each additional 100m) | |
| Protection Level (IP) | IP21 or IP23, other protection levels available |
Product Highlights
Wide Compatibility
Energy Saving and Environmental Protection
High Reliability and Long Lifespan
