Product Description

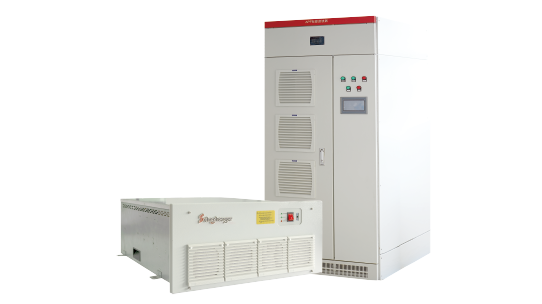

The GPD-S Static Var Generator (SVG) employs advanced IGBT dynamic adjustment technology, responding to load changes in milliseconds with precise capacitive and inductive reactive power compensation. It supports parallel module design for larger capacity and has harmonic suppression, achieving comprehensive power quality management.
Compared to traditional capacitor-reactor devices, GPD-S boosts system performance with faster dynamic response and precise regulation, avoiding over/under-compensation and reducing harmonic amplification and power loss. Its modular design ensures flexibility and easy maintenance for industrial, commercial, and public facilities.
Technical Overview
| Power Supply Voltage | 380V (-20% ~ +20%) / 690V (-20% ~ +15%) |
| Power Supply Frequency | 50Hz (-10% ~ +10%) |
| Response Time | ≤50us (Full Response Time ≤5ms) |
| Overall Efficiency | >97% |
| Target Power Factor | Continuously adjustable from capacitive to inductive |
| Compensation Method | Reactive Power Compensation |
| Parallel Operation Capability | 8 units |
| Operation Display | Color LCD Touch Screen Human-Machine Interaction |
| Protection | Device Overcurrent, Device Overheating, Grid Over/Undervoltage, Grid Phase Loss, DC Bus Over/Undervoltage, Overload Automatic Current Limiting Protection |
| Cooling | Forced Air Cooling |
| Protection Class | IP20, Other IP ratings can be customized |
| Current Sensor | 150:5-10000:5 |
| Operating Ambient Temperature | -20℃ ~ +45℃ |
| Module Color | RAL7021 Black Textured (Other colors can be provided upon request) |
| Relative Humidity | 5% ~ 95% (25℃) |
| Noise | Less than 65dB |
| Communication | MODBUS RTU (RS485) |
Product Highlights
High Reliability and Long Lifespan
High Precision and Multifunctional
Energy Saving and Environmental Protection
