Product Description
The SRP Thermal Overload Relay is a protection device specially designed for motors. It reliably protects the motor from overload damage through precise current settings and fast response capabilities. Its bimetallic strip working principle ensures that the circuit is quickly cut off under overload conditions, ensuring the safe and stable operation of the electrical system.
The SRP thermal relay is equipped with an adjustment knob, allowing flexible setting of protection values based on motor rated current and overload characteristics, with easy operation without tools. Its compact design simplifies installation and maintenance, making it a reliable electrical safety component in industrial environments.
Our product portfolio
-
Overview
The SRP1 series thermal overload relay is suitable for AC circuits of 50Hz/60Hz, up to 660V, and 80A, providing overload and phase-loss protection for AC motors. Equipped with differential mechanisms, temperature compensation, and trip indication, it can be used with SPC AC contactors or independently, meeting GB14048.4 and IEC60947-4 standards.
Technical Parameters
Product Model SRP1-25 SRP1-36 SRP1-93 Rated Operating Current (A) 25 36 93 Rated Insulation Voltage (V) 690 690 690 Phase Failure Protection Yes Yes Yes Manual and Automatic Reset Yes Yes Yes Temperature Compensation Yes Yes Yes Trip Indication Yes Yes Yes Test Button Yes Yes Yes Installation Type Plug-in, Stand-alone Plug-in, Stand-alone Plug-in, Stand-alone Auxiliary Contacts 1NO+1NC 1NO+1NC 1NO+1NC -
Overview

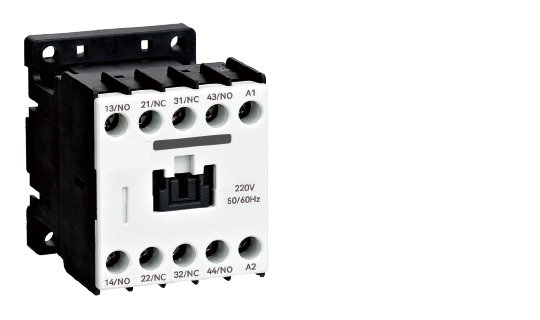

The SRP2 series control relay is a small, high-performance electrical component designed for signal control, circuit switching, and logic control in industrial automation, electrical control cabinets, and smart buildings. With modular design, it supports multiple contact configurations, meeting IEC60947-5 standards for efficient, stable control.
Technical Parameters
Product Model SRP2 Rated Insulation Voltage (Ui) 690 Rated Impulse Withstand Voltage (Uimp) 6 Pollution Degree 2 Compliant Standards IEC 60947-1, IEC 60947-5-1, GB/T 14048.1, GB/T14048.5 Product Certification CE、CCC、CQC Protection Level IP20 Environmental Temperature Storage -50 ~ +80℃ Operating -40 ~ +70℃ Allowable Operation under Us -40 ~ +70℃
Product Highlights
Intelligence and Visualization
High Reliability and Long Lifespan
High Precision and Multifunctional
