Product Description

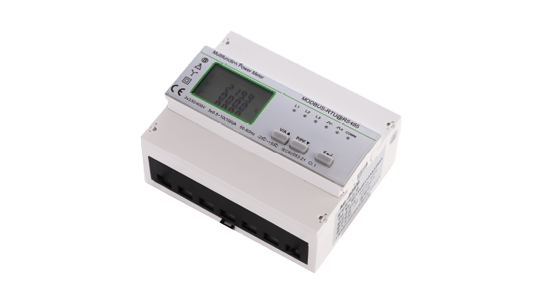

The MGA series rail-mounted multifunctional instrument is a compact energy monitoring device specifically designed for industrial and commercial electrical systems. It uses a standard rail-mounted installation method, making it easy to install and integrate into distribution cabinets, control boxes, and other equipment.
It integrates the measurement functions of voltage, current, power, power factor, frequency, energy consumption, and other electrical parameters, enabling real-time monitoring and display of the power system's operating status. It provides a clear and intuitive digital display, helping users efficiently manage and optimize energy usage.
Technical Overview
| Electrical Parameters | Normal Operating Voltage | 0.7Un ~ 1.2Un |
| Voltage Line Power Consumption | ≤2W and 5VA | |
| Current Line Power Consumption | 1VA | |
| Climatic Conditions | Normal Operating Temperature | -20℃ ~ +55℃ |
| Extreme Operating Temperature | -30℃ ~ +70℃ | |
| Storage and Transport Temperature | -40℃ ~ +70℃ | |
| Storage and Operating Humidity | ≤85% RH | |
| Technical Parameters | Accuracy | Active Power Class 1 or 0.5s Class |
| Metering Range | 0 ~ 99,999,999 kWh | |
| Display | LCD | |
| Communication Baud Rate | RS485: 2,400bps ~ 19,200 bps | |
| Communication Protocol | Modbus or IEC 62056-21 |
Product Highlights
Intelligence and Visualization
Wide Compatibility
High Precision and Multifunctionality
