Product Description

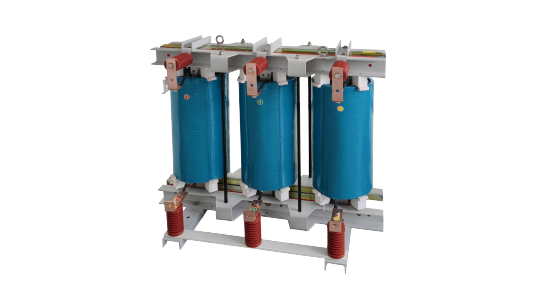

The HVRS 10kV reactor, designed for MV/HV systems, stabilizes voltage fluctuations, enhances power quality. Made of high-quality materials, it filters harmonics, reduces voltage surges, ensures grid safety. Its compact design eases installation & maintenance, crucial for grid optimization & system stability.
The HVRS 10kV reactor excels in harmonic suppression, effectively filtering harmonic components in the power grid, stabilizing voltage, and reducing fluctuations to ensure stable operation of power equipment. Its compact design facilitates easy installation and low-cost maintenance, enhancing operational efficiency.
Technical Overview
| Construction | Three-phase, core-type |
| Cooling Method | Air-cooled |
| Installation Location | Indoor (IP00) |
| Impregnation Method | Vacuum impregnation with polyester resin |
| Insulation Class | 155°C (Class F) |
| Fundamental Voltage | Uh1=1.05%U |
| Harmonic Load | Third harmonic voltage allowable value: system voltage x 0.5%(U3rd=U x 0.5%) |
| Fifth harmonic voltage allowable value: system voltage x 5.0%(U5th=U x 5.0%) | |
| Seventh harmonic voltage allowable value: system voltage x 5.0%(U7th=U x 5.0%) | |
| Withstand Voltage Test | 10kV - 1 minute (according to IEC6076/3) |
| Error | ±3% |
| Linearity | 1.2 * each harmonic current (Ilin = 1.2 ∑(Ih)) |
| Manufacturing Standards | IEC60076-6, IEC60289 |
