Product Description

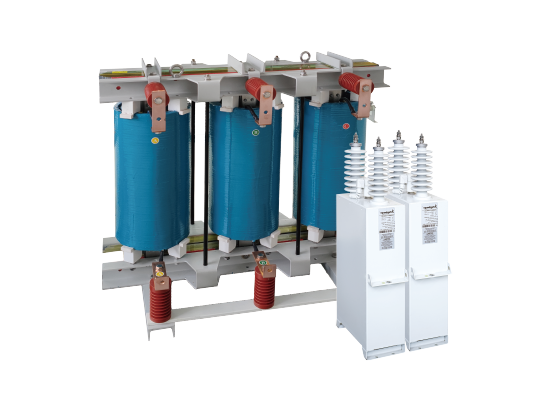

The ZUG medium-voltage reactive power compensation system is designed for medium-voltage grids, using intelligent control and modular design to dynamically adjust reactive power, improving power factor and quality, responding quickly to load changes, and reducing grid losses.
The ZUG series compensation equipment is widely used in industries, energy, transportation, and public facilities, especially suitable for medium-voltage inverters, transformers, long-distance transmission lines, and scenarios with large load fluctuations. It optimizes voltage stability and protects equipment.
Technical Overview
| Rated Voltage | 10kV ±10% |
| Rated Frequency | 50Hz / 60Hz |
| Compensation Capacity | 100kVar ~ 5000kVar (Customizable based on requirements) |
| Maximum Switching Time | ≤50ms (Applicable to dynamic compensation devices) |
| Dielectric Loss Factor (tanδ) | ≤0.0002 (High-quality capacitor performance) |
| Temperature Range | -40°C to +55°C (Suitable for cold and high-temperature regions) |
| Protection Level | IP30 / IP40 / IP54 (Choose based on installation environment) |
| Altitude | ≤2000m (Customization required for high-altitude areas) |
| Total Harmonic Distortion (THD) | ≤5% (Ensures grid stability) |
| Rated Insulation Level | 75kV (Lightning impulse withstand voltage), 42kV (Power frequency withstand voltage) |
| System Switching Time | Programmable, typical setting range is 1~10 seconds (static compensation) |
| Communication Interface | Supports RS485, Modbus, Ethernet interfaces for seamless integration with energy management systems |
Product Highlights
Wide Compatibility
Energy Saving and Environmental Protection
High Reliability and Long Lifespan
Intelligence and Visualization
